Selection Cordless Hedge Trimmers

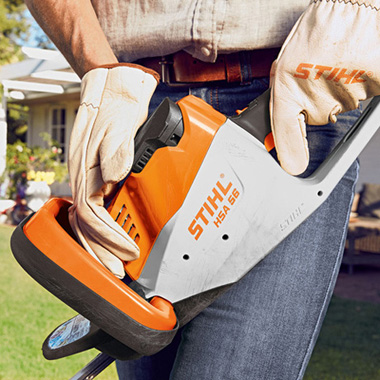

HSA 56 Hedge Trimmer

Neat cutting performance with no need for cables

General

HSA 56 Hedge Trimmer
HSA 56 Hedge Trimmer
HSA 56 Hedge Trimmer
HSA 56 Hedge Trimmer
HSA 56 Hedge Trimmer
HSA 56 Hedge Trimmer

Lightweight cordless hedge trimmer with high cutting performance for trimming bushes and hedges around the home. Single-sided cutter blade with 30-mm tooth spacing, integrated cut protection in a droplet shape, and screw-on blade tip protector.

Versions



The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.

Technical data

HSA 56

Technical data

Technical data Value
Gauge mm 23
Weight kg 1) 2,9
Rated voltage V 36
Tooth spacing mm 30

1) Without battery

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.

Features

HSA 56

Standard features

  • Quiet operation Zoom
    Quiet operation

    The STIHL COMPACT cordless power system devices are so quiet you don't even need ear protection.

  • Innovative cutting system Zoom
    Innovative cutting system

    The blade shape has been optimised to catch branches and hold them against the blade durig the cut and serves as an integrated blade guard.

  • Intermediate battery position in the device Zoom
    Intermediate battery position in the device

    The battery can be inserted into the device in 2 stages. In the first locking stage – the intermediate position – the battery is secured in the device but does not touch the contacts in the device. In the second locking stage – the operating position – the battery is completely inserted and touches the contacts in the device.

  • Soft grip with control lever Zoom
    Soft grip with control lever

    The soft grip with its control lever for switching on and off and control lever lock absorbs some of the vibrations and is extremely easy to grip.

  • Double sided cutting blades Zoom
    Double sided cutting blades

    STIHL hedge trimmers with double-sided cutting blades cut both vertically and horizontally.

  • Two handed design Zoom
    Two handed design

    The tool is easily started by activating both switches on the loop handle and the rear handle at the same time. The cutting speed is continuously variable using the rear control, for a fine and precise cut. The two handed design is suitable for both left and right-handed users.

  • Hanging eye Zoom
    Hanging eye

    The hedge trimmers can also be conveniently hung up on the wall with the practical hanging eye.

  • Blade tip protector Zoom
    Blade tip protector

    The tip protector comes as standard and makes cutting near the ground or along walls easier while protecting the special cutters from damage.

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.

Accessories

HSA 56

Accessories

    • AL 101 charger Zoom
      AL 101 charger

      230 V. Compatible with STIHL AP and AK batteries. With charge level indicator (LED). Cord wrap with velcro. Wall mounting possible.

    Technical data Value
    Charging current 1,6 A
    Power output 0,1 kW
    Rated voltage 220-240 V
    Weight 0,7 kg

    Versions

    • AK 10 battery Zoom
      AK 10 battery

      Compact lithium-ion battery for the COMPACT cordless power system with a voltage of 36 V and a capacity of 118 Wh. Battery life depends on the device type. With charge level indicator (LED). Compatible with AL 101, AL 100, AL 300 and AL 500 chargers.

    Technical data Value
    Weight 0,8 kg
    Rated voltage 36 V
    Energy Content 1) 54 Wh
    Battery cell technology LITHIUM-ION

    1) Power capacity according to the specifications of the cell manufacturer. The actual power capacity available during operation is lower, to increase service life

    Versions

    • AK 20 battery Zoom
      AK 20 battery

      Compact lithium-ion battery for the COMPACT cordless power system with a voltage of 36 V and a capacity of 118 Wh. Battery life depends on the device type. With charge level indicator (LED). Compatible with AL 101, AL 100, AL 300 and AL 500 chargers.

    Technical data Value
    Weight 1,2 kg
    Rated voltage 36 V
    Energy Content 1) 108 Wh
    Battery cell technology LITHIUM-ION

    1) Power capacity according to the specifications of the cell manufacturer. The actual power capacity available during operation is lower, to increase service life

    Versions

    • AK 30 battery Zoom
      AK 30 battery

      Compact lithium-ion battery for the STIHL AK-System with a voltage of 36 V and a capacity of 180 Wh. Battery life depends on the device type. With charge level indicator (LED). Compatible with AL 101, AL 100, AL 300 and AL 500 chargers.

    Technical data Value
    Weight 1,3 kg
    Rated voltage 36 V
    Energy Content 1) 180 Wh
    Battery cell technology Lithium-Ionen AK-System

    1) Power capacity according to the specifications of the cell manufacturer. The actual power capacity available during operation is lower, to increase service life

    Versions

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.
