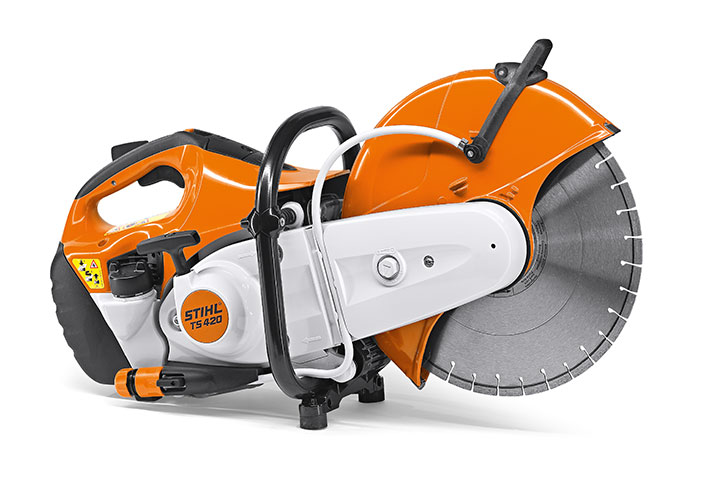

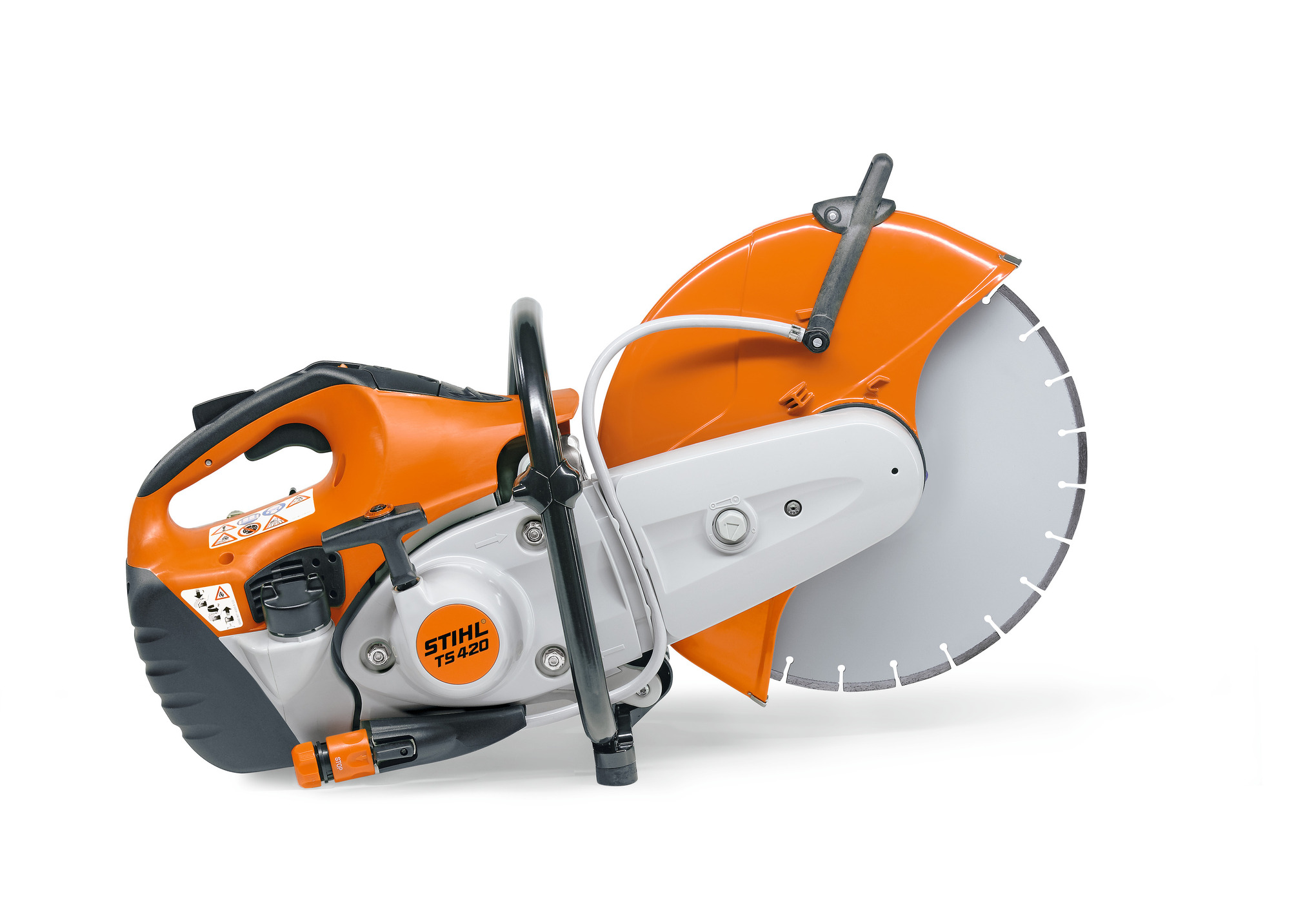

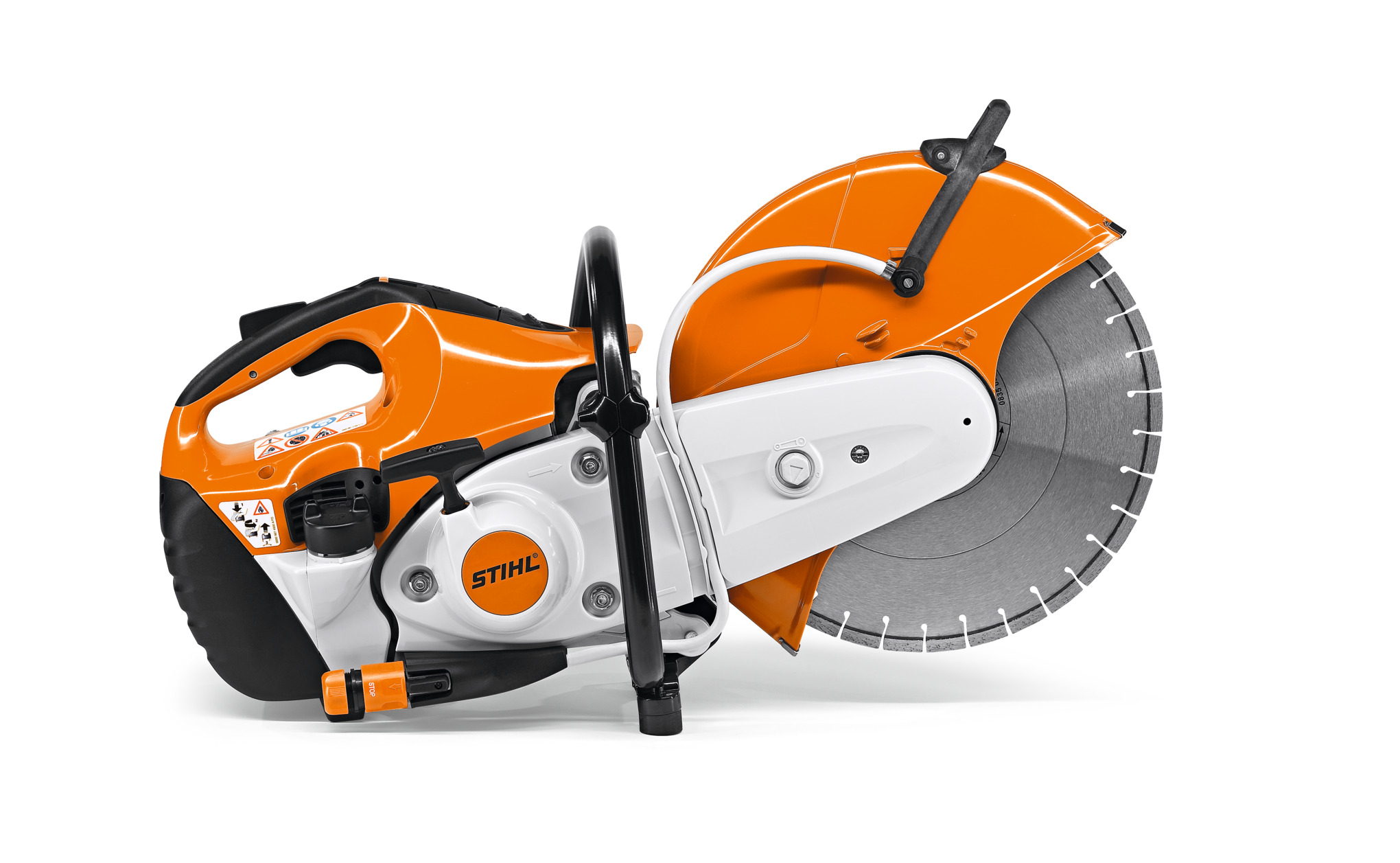

TS 420 Petrol Cut-off Machine

TS 420 Petrol Cut-off Machine

TS 420 Petrol Cut-off Machine
TS 420 Petrol Cut-off Machine
TS 420 Petrol Cut-off Machine
R 19,524.00
All prices include 15% VAT.
Select item
  • Low-maintenance filter system thanks to cyclone routing
    • Available to buy from STIHL Approved Dealers
    Only available from your local STIHL Approved Dealer

    Technical details

    Displacement66.7 cm³
    Power3.20 kW
    CO2747 g/kWh
    Device weight without refuelling9.8 kg 1)
    Cutting disk diameter350 mm
    1)without cutting disc

    Features

    The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.

    HIGHLY POWER-EFFICIENT. With the STIHL 2-MIX engine, you can reduce exhaust emissions and fuel consumption, and therefore operating costs. This 2-stroke engine is low-maintenance and uses fuel efficiently even at high power levels. Use a mixture of petrol and engine oil as fuel. The STIHL 2-MIX engine complies with the strict EU Stage V emissions directive.
    STIHL 2-MIX ENGINE
    ENSURES A LONG FILTER SERVICE LIFE. The long-life air filter system for cut-off machines does not collect coarse dust particles, but uses cyclone air routing to separate them and then discharges them into the ambient air. With just this first step the system removes around 80% of dust particles in the intake air. This enables an extremely long filter service life, and makes the tool easy to maintain.
    LONG-LIFE AIR FILTER SYSTEM FOR CUT-OFF MACHINES
    FOR DUST BINDING AND COOLING. When working with your power tool, a permanent water supply is provided for flushing the cutting wheel. It is used to bind dust and cool the cut. With the water connection directly on the power tool, this rinsing is easy and permanently assured.
    WATER CONNECTION
    EXTENDS THE BELT’S SERVICE LIFE. Semi-automatic STIHL belt tensioning makes it easier for you to re-tension the drive belt. All you need is to adjust the adjustment screw with your spark plug wrench. Consistent tension extends the service life of the belt and bearing. For more detailed information on re-tensioning, please refer to the operating instructions of your power tool.
    SEMI-AUTOMATIC STIHL BELT TENSIONING

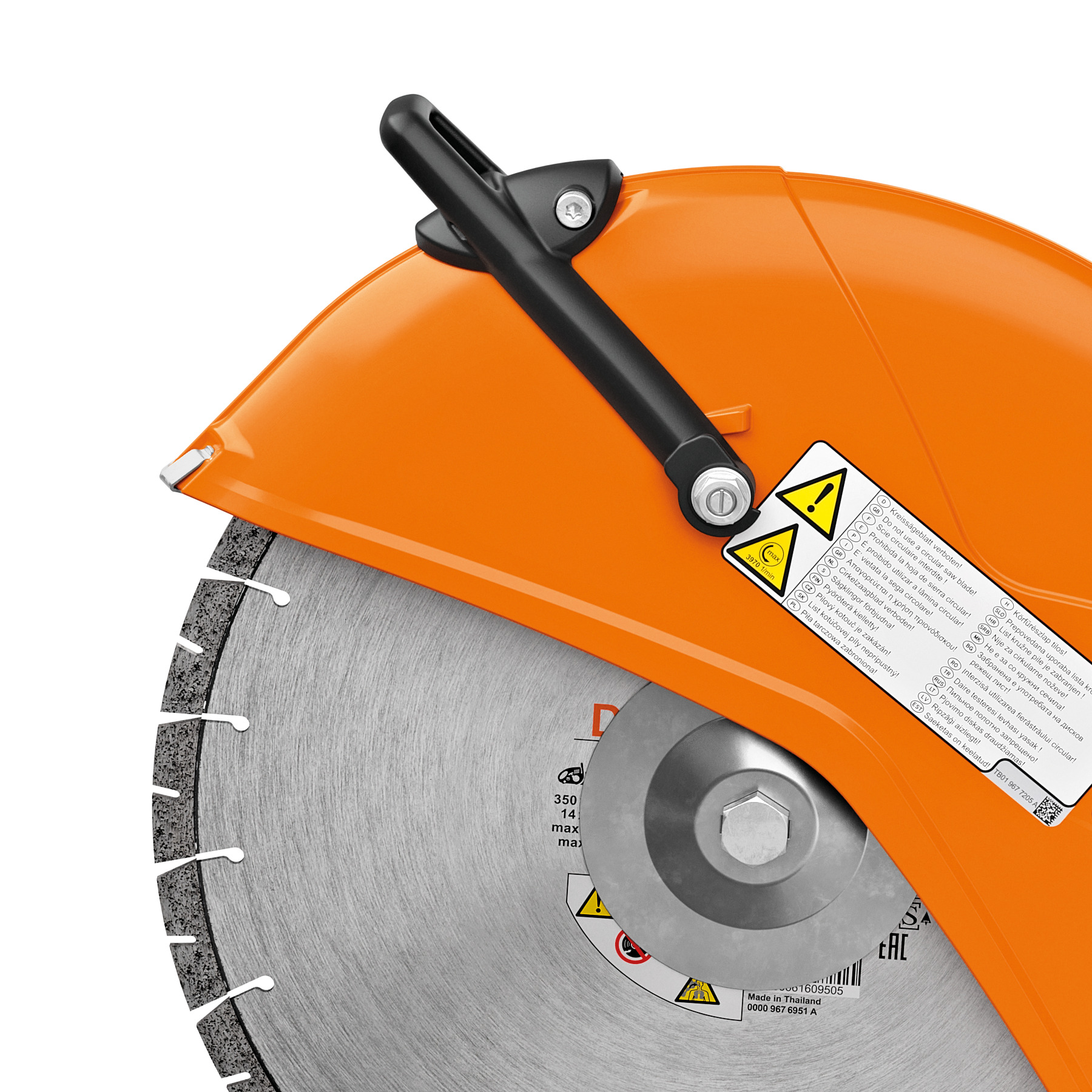

    LIGHTWEIGHT AND STABLE. The cutting wheel guard ensures that you are not hit by flying cut material or cooling water from the cutting wheel. The cast magnesium guard is very lightweight and robust.
    MAGNESIUM GUARD
    REDUCED MAINTENANCE. The compensator is a control system in the carburettor, which uses pressure compensation to ensure that engine performance, exhaust gas quality and fuel consumption remain virtually constant over a long period of time, despite increasing contamination of the air filter. You do not need to clean the air filter until there is a noticeable drop in performance. This means that you can work for a long time without maintenance.
    COMPENSATOR
    EFFORTLESS START-UP. The decompression valve makes it easier to start your power tool. When starting, you can allow some of the compressed mixture to escape from the cylinder by opening the valve. This protects the start-up system and reduces the amount of force required on the starter cord.
    MANUAL DECOMPRESSION
    FOR PRECISE GUIDANCE. With the ergonomic handle, you can keep a firm grip on your power tool and carry out cuts precisely, even when dealing with very hard stone. The curved handle offers you an optimised grip position and the highest level of comfort when working.
    ERGONOMIC HANDLE

    Professional cut-off saw

    Thanks to its compact dimensions, road construction and landscaping professionals can use the STIHL TS 420 petrol-driven cut-off machine to carry out particularly tough cutting tasks very reliably. In the accessories for cut-off machines, you can find a range of cutting wheels, such as diamond cutting wheels, to suit different applications. When buying cutting wheels, ensure you select the right size for your cut-off machine and that the cutting wheels are suitable for the materials you want to cut.

    The STIHL anti-vibration system in the STIHL TS 420 ensures that you can guide the motorised cut-off machine precisely even during longer periods of use, protecting your muscles and joints. The ergonomic handle design also helps with this. To ensure you can start the economical STIHL 2-MIX engine with ease, the power tool also features a decompression valve that reduces the effort required to pull the starter cord.

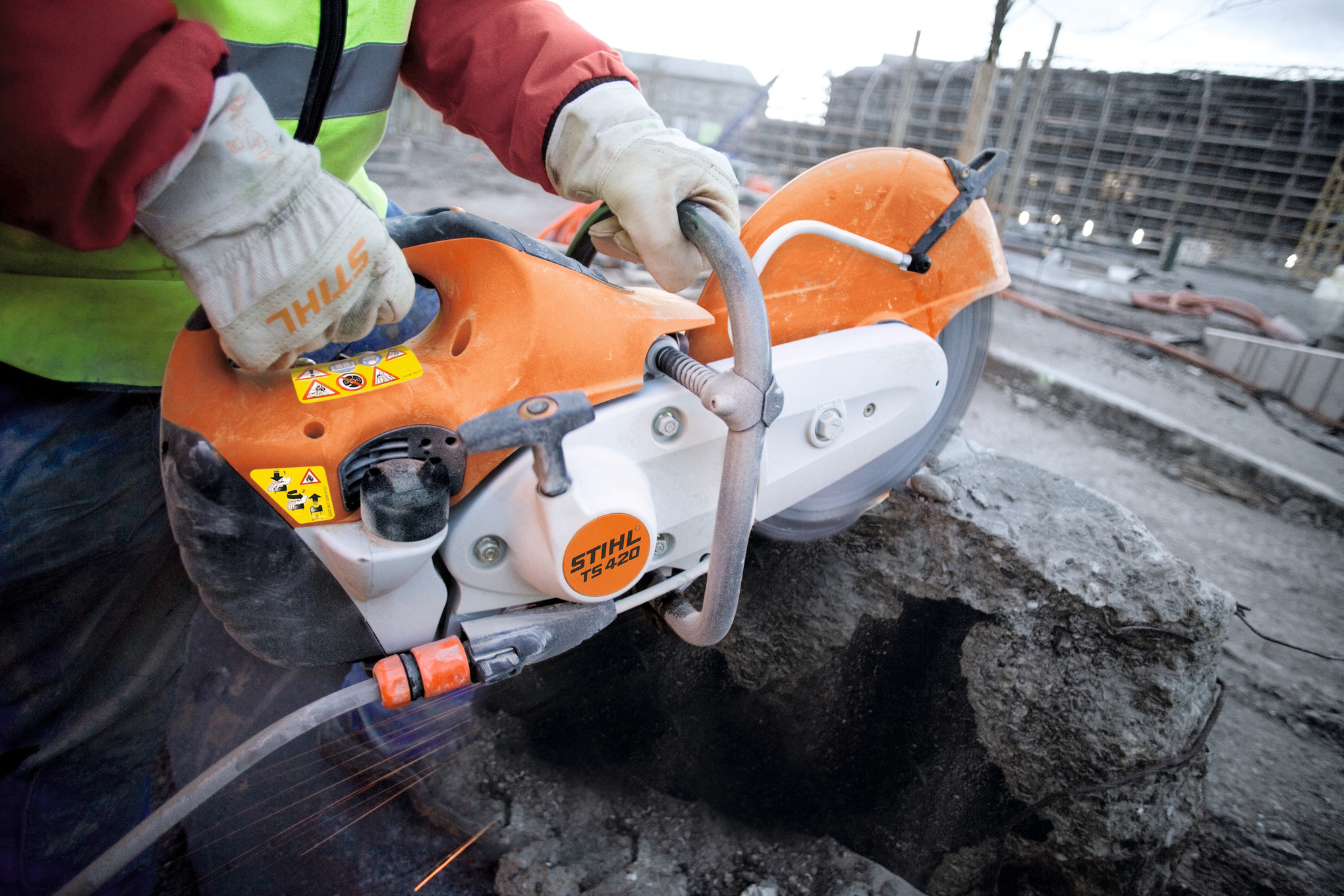

    The water connection continuously feeds water to the cutting blade of the STIHL TS 420 motorised cut-off machine. Water binds the dust and cools the cutting wheel, while the long-life air filter system and the compensator extend the cleaning interval and ensure you can work for longer periods without interruption. The separation of clean air and mixture in the engine boosts the performance while also reducing consumption. This video shows the TS 420 petrol cut-off machine in action in construction and civil engineering settings.
