TS 410 Petrol Cut-off Machine

TS 410
R 19,524.00
All prices include 15% VAT.
Select item
  • For reliable cutting of concrete, stone, asphalt, structural steel and pipes
  • Low-maintenance filter system thanks to cyclone routing
    • Available to buy from STIHL Approved Dealers
    Only available from your local STIHL Approved Dealer

    Technical details

    Displacement66.7 cm³
    Power3.20 kW
    CO2747 g/kWh
    Device weight without refuelling9.6 kg 1)
    Cutting disk diameter300 mm
    1)without cutting disc

    Features

    The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.

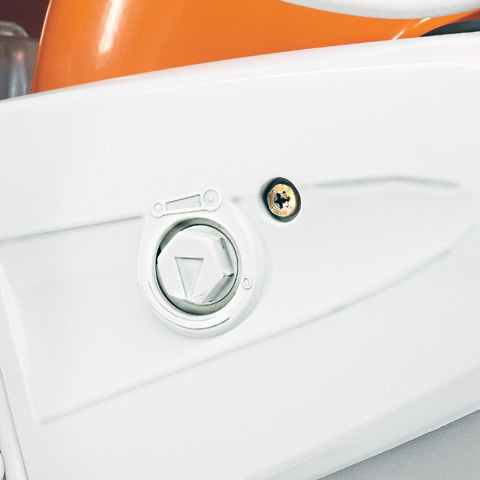

    EXTENDS THE BELT’S SERVICE LIFE. Semi-automatic STIHL belt tensioning makes it easier for you to re-tension the drive belt. All you need is to adjust the adjustment screw with your spark plug wrench. Consistent tension extends the service life of the belt and bearing. For more detailed information on re-tensioning, please refer to the operating instructions of your power tool.
    SEMI-AUTOMATIC STIHL BELT TENSIONING
    HIGHLY POWER-EFFICIENT. With the STIHL 2-MIX engine, you can reduce exhaust emissions and fuel consumption, and therefore operating costs. This 2-stroke engine is low-maintenance and uses fuel efficiently even at high power levels. Use a mixture of petrol and engine oil as fuel. The STIHL 2-MIX engine complies with the strict EU Stage V emissions directive.
    STIHL 2-MIX ENGINE
    ENSURES A LONG FILTER SERVICE LIFE. The long-life air filter system for cut-off machines does not collect coarse dust particles, but uses cyclone air routing to separate them and then discharges them into the ambient air. With just this first step the system removes around 80% of dust particles in the intake air. This enables an extremely long filter service life, and makes the tool easy to maintain.
    LONG-LIFE AIR FILTER SYSTEM FOR CUT-OFF MACHINES
    FOR DUST BINDING AND COOLING. When working with your power tool, a permanent water supply is provided for flushing the cutting wheel. It is used to bind dust and cool the cut. With the water connection directly on the power tool, this rinsing is easy and permanently assured.
    WATER CONNECTION
    LIGHTWEIGHT AND STABLE. The cutting wheel guard ensures that you are not hit by flying cut material or cooling water from the cutting wheel. The cast magnesium guard is very lightweight and robust.
    MAGNESIUM GUARD
    REDUCED MAINTENANCE. The compensator is a control system in the carburettor, which uses pressure compensation to ensure that engine performance, exhaust gas quality and fuel consumption remain virtually constant over a long period of time, despite increasing contamination of the air filter. You do not need to clean the air filter until there is a noticeable drop in performance. This means that you can work for a long time without maintenance.
    COMPENSATOR
    EFFORTLESS START-UP. The decompression valve makes it easier to start your power tool. When starting, you can allow some of the compressed mixture to escape from the cylinder by opening the valve. This protects the start-up system and reduces the amount of force required on the starter cord.
    MANUAL DECOMPRESSION
    FOR PRECISE GUIDANCE. With the ergonomic handle, you can keep a firm grip on your power tool and carry out cuts precisely, even when dealing with very hard stone. The curved handle offers you an optimised grip position and the highest level of comfort when working.
    ERGONOMIC HANDLE

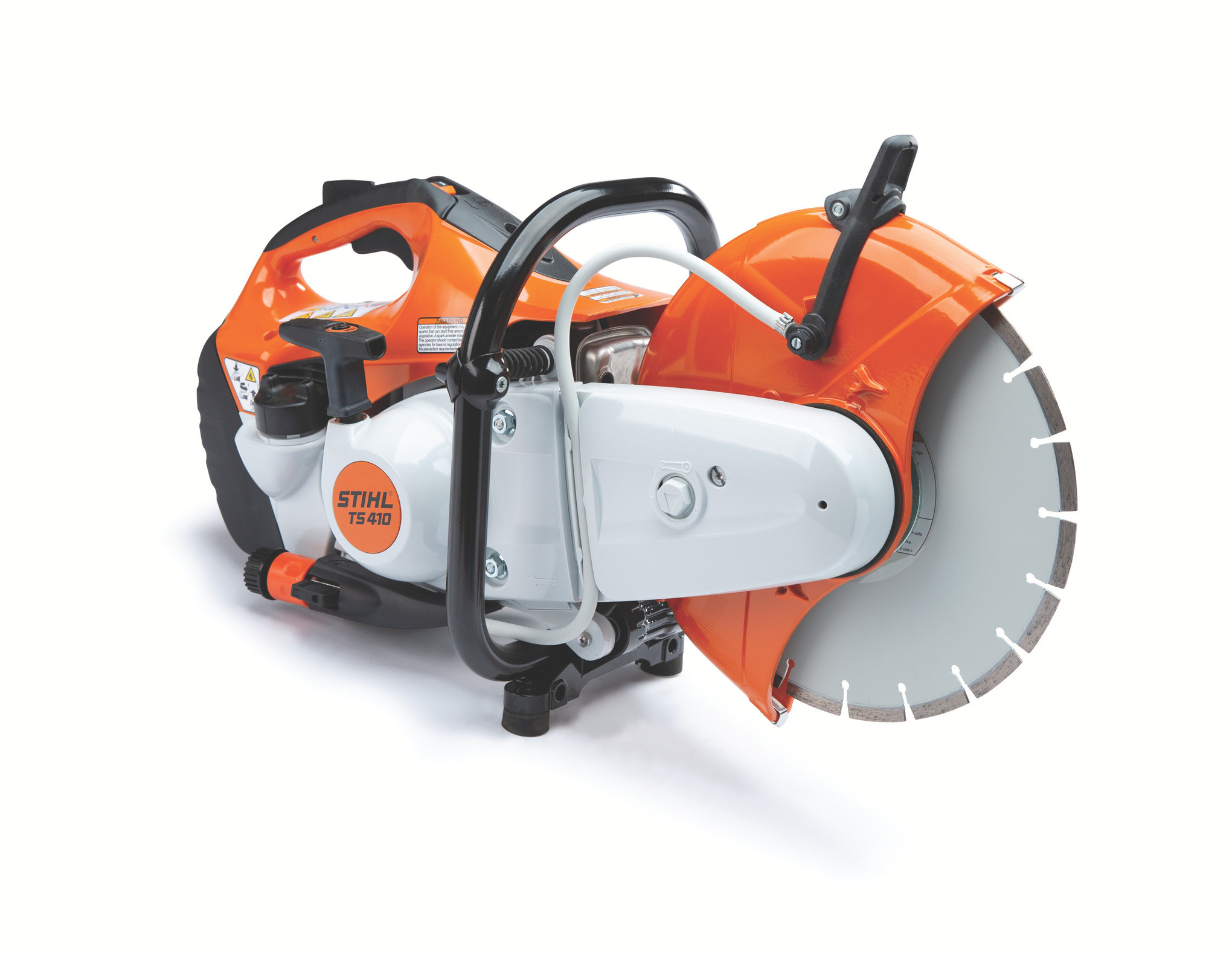

    TS 410 petrol cut-off machine: compact, robust and powerful

    The TS 410 is a lean, clean, cut-off machine that is easy to use and easier to maintain. Just squeeze the trigger and watch its 12" cutting wheel grind through iron, steel, concrete and expectations. This model features advanced filter technology that automatically handles daily maintenance. Its revolutionary X2 air filtration removes 99.96% of particles from air entering the carburetor and engine, making its onboard filters virtually maintenance free. Good thing we included an anti-vibration system to maximize comfort – a feature you’ll appreciate after a full day of cutting.
