Name: TS 500¡ Petrol Cut-off Machine
Brand: STIHL

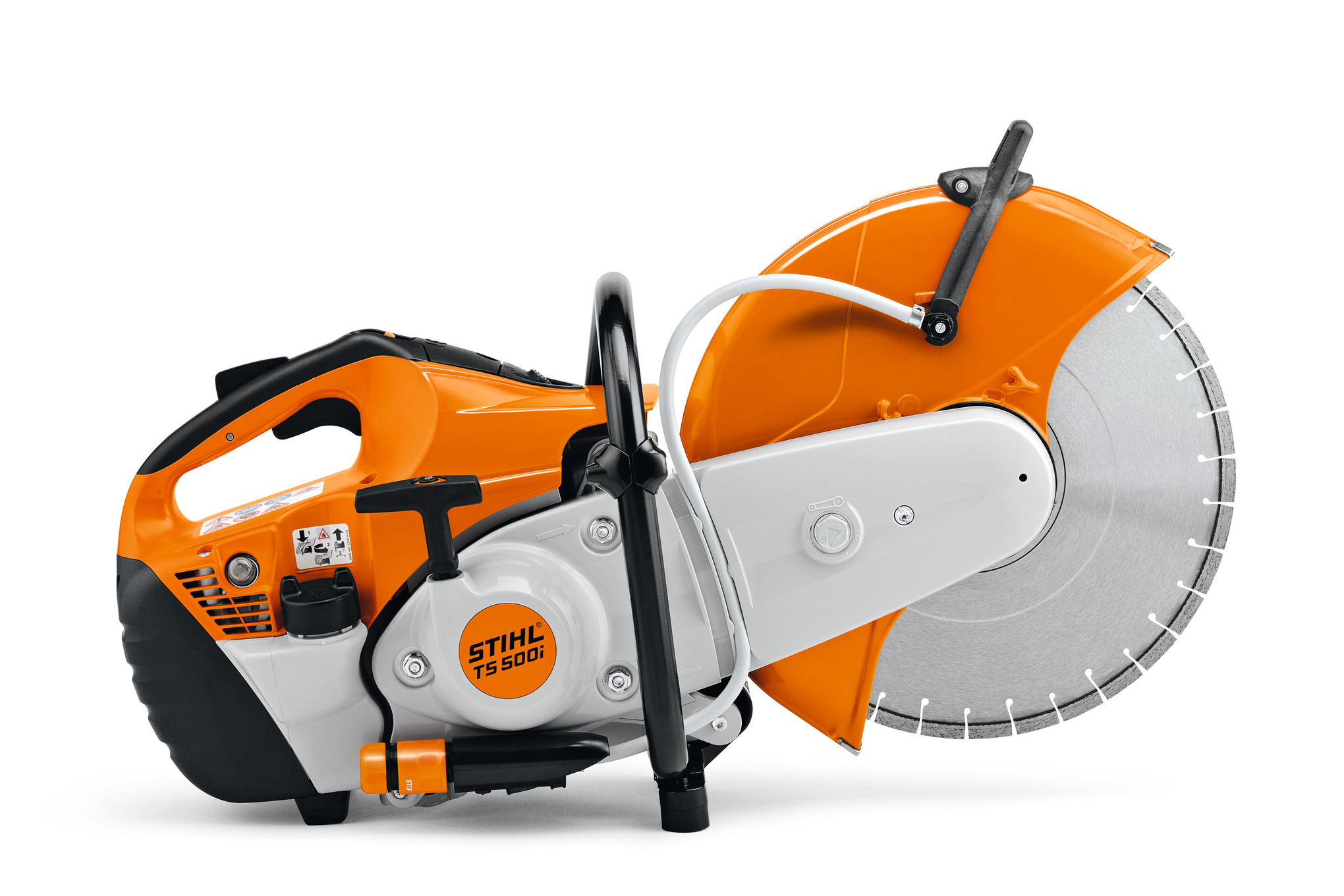

TS 500¡ Petrol Cut-off Machine

Features

The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.

STIHL Electronic water control (A)

The electronic water control system can be operated via simple buttons while the engine is running. The water then switches on and off during cutting automatically, depending on the engine speed. The water volume can be regulated by simply pressing the plus / minus buttons, ensuring optimum dust suppression at the touch of a button.

STIHL Fuel injection (i)

The electronically controlled fuel injection ensures perfect running properties every time and reduces fuel consumption in comparison with tools without injection technology.

STIHL 2-MIX engine with stratified charge system

2-stroke engine with stratified charge. A fuel-free layer of air is created between the burned charge in the combustion chamber and the fresh charge in the crankcase, reducing the amount of fuel lost during the charge cycle. This results in more power with a lower weight, up to 20% lower fuel consumption than regular 2-stroke engines and significantly reduced exhaust emissions.

LONG-LIFE AIR FILTER SYSTEM FOR CUT-OFF MACHINES

ENSURES A LONG FILTER SERVICE LIFE. The long-life air filter system for cut-off machines does not collect coarse dust particles, but uses cyclone air routing to separate them and then discharges them into the ambient air. With just this first step the system removes around 80% of dust particles in the intake air. This enables an extremely long filter service life, and makes the tool easy to maintain.

Anti-vibration system

Intense vibration at the handles of power tools can lead to long-term effects on blood vessels in the hands and arms. STIHL has therefore developed an effective anti-vibration system whereby the oscillations from the machine's engine are dampened which significantly reduces vibrations at the handles.

STIHL ElastoStart

STIHL ElastoStart reduces the shock caused by the compression of the engine during starting. The compression shock is taken away from the user's joints and muscles through a spring or rubber element in the starter handle.

Manual fuel pump (Purger)

A small fuel pump delivers fuel to the carburettor at the touch of a button. This reduces the number of starting strokes required following extended breaks in operations.

SEMI-AUTOMATIC STIHL BELT TENSIONING

EXTENDS THE BELT’S SERVICE LIFE. Semi-automatic STIHL belt tensioning makes it easier for you to re-tension the drive belt. All you need is to adjust the adjustment screw with your spark plug wrench. Consistent tension extends the service life of the belt and bearing. For more detailed information on re-tensioning, please refer to the operating instructions of your power tool.

Magnesium cutting guard

The cutting guard is mage of die-cast magnesium, which is significantly lighter and more robust than traditional cutting guards. The cutting guard protects you from being hit by flying clippings or the cooling water from the cutting disc.

Compensator

This controller in the carburettor prevents the fuel-air mixture getting richer as the air filter becomes clogged. The correct quantity of fuel is delivered to the carburettor depending on the quantity of air passing through the air filter. This keeps the fuel/air ratio in the combustion mixture constant and hence also the engine power. The filter doesn't need to be cleaned until an appreciable drop in power occurs.

Decompression valve

The decompression valve allows some of the compression pressure in the cylinder to escape, so less force is needed on the starter rope.

ERGONOMIC HANDLE

FOR PRECISE GUIDANCE. With the ergonomic handle, you can keep a firm grip on your power tool and carry out cuts precisely, even when dealing with very hard stone. The curved handle offers you an optimised grip position and the highest level of comfort when working.

The world's first cut-off saw with electronically controlled fuel injection

Lightweight, powerful and fuel-injected, 350mm cut-off saw is designed for superior balance and handling during your toughest jobs. The STIHL TS 500i also features a high-efficiency engine with low exhaust emissions, optimal torque throughout its RPM range and excellent acceleration. Its Electronic Water Control (EWC) allows for easy water flow adjustment while cutting and its long-life air filtration system maintains an incredible 99.96% cleaning efficiency.

Capacity	72,2 cm3
Weight	10,2 kg ¹⁾
Sound power level	111 dB(A) ²⁾
Performance	3,9 kW
Tank volume	0,72 l
