AP system

Battery AP 500 S

Battery AP 500 S
Battery AP 500 S
Battery AP 500 S
Battery AP 500 S
R 8,898.90*
All prices include 15% VAT.
Select item

  • Available to buy from STIHL Approved Dealers

    Click on the button above to find your nearest one
  • Product Details
    • 337 Wh battery at a weight of 2 kg

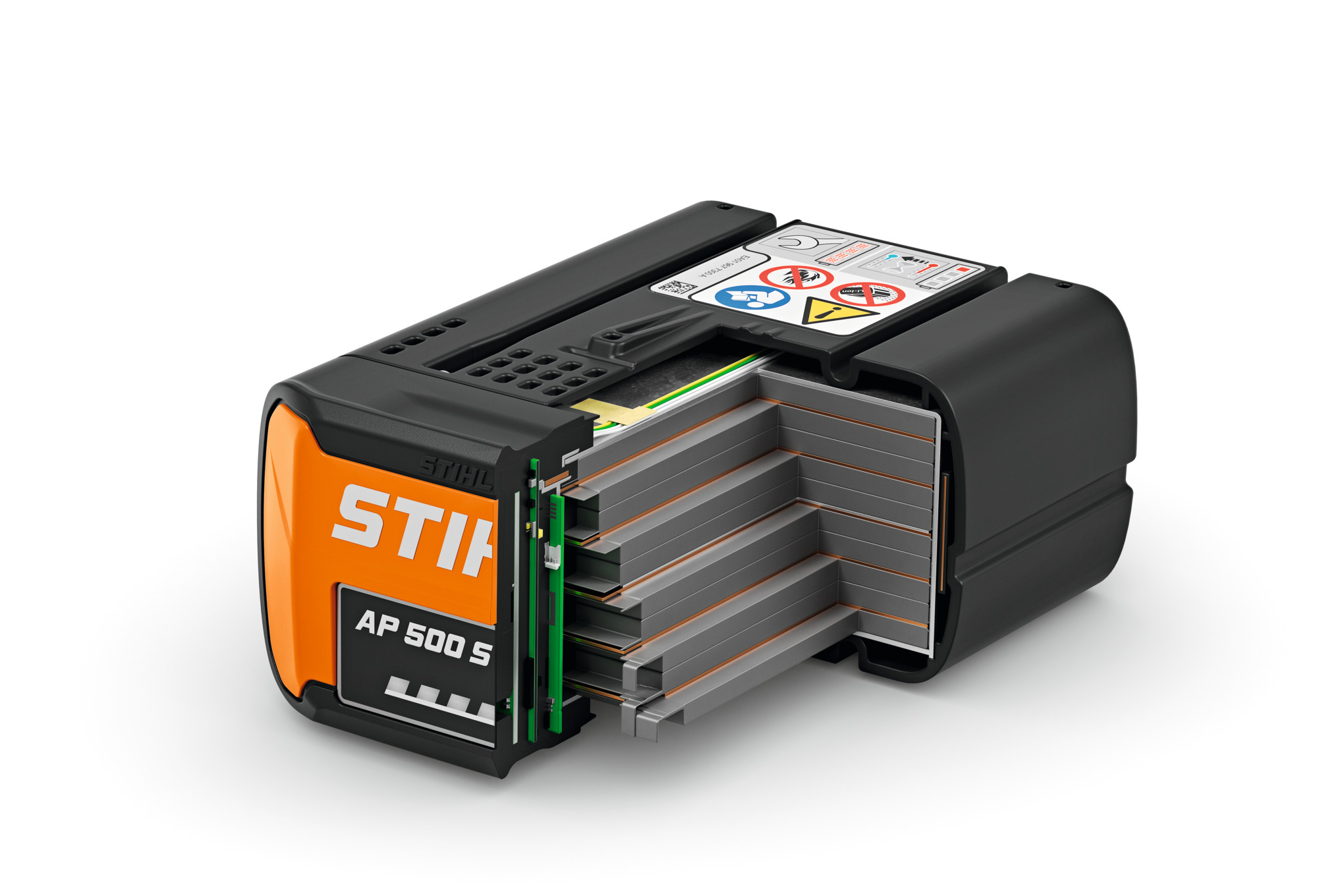

    • Increased number of charging cycles thanks to Power Laminate Technology
    • Compatible with all cordless tools in the STIHL AP system
    • Powerful and durable lithium-ion battery
    • 4 practical LEDs for indicating charging status and power content
  • Owner manuals

    Find here the owner manual

Technical details

Rated voltage36
Max. voltage40
Cordless power systemAP
Battery weight2 kg
Rated capacity as per IEC 619608.80 A·h

AP 500 S battery: The flexible cordless solution for garden, landscape and tree maintenance

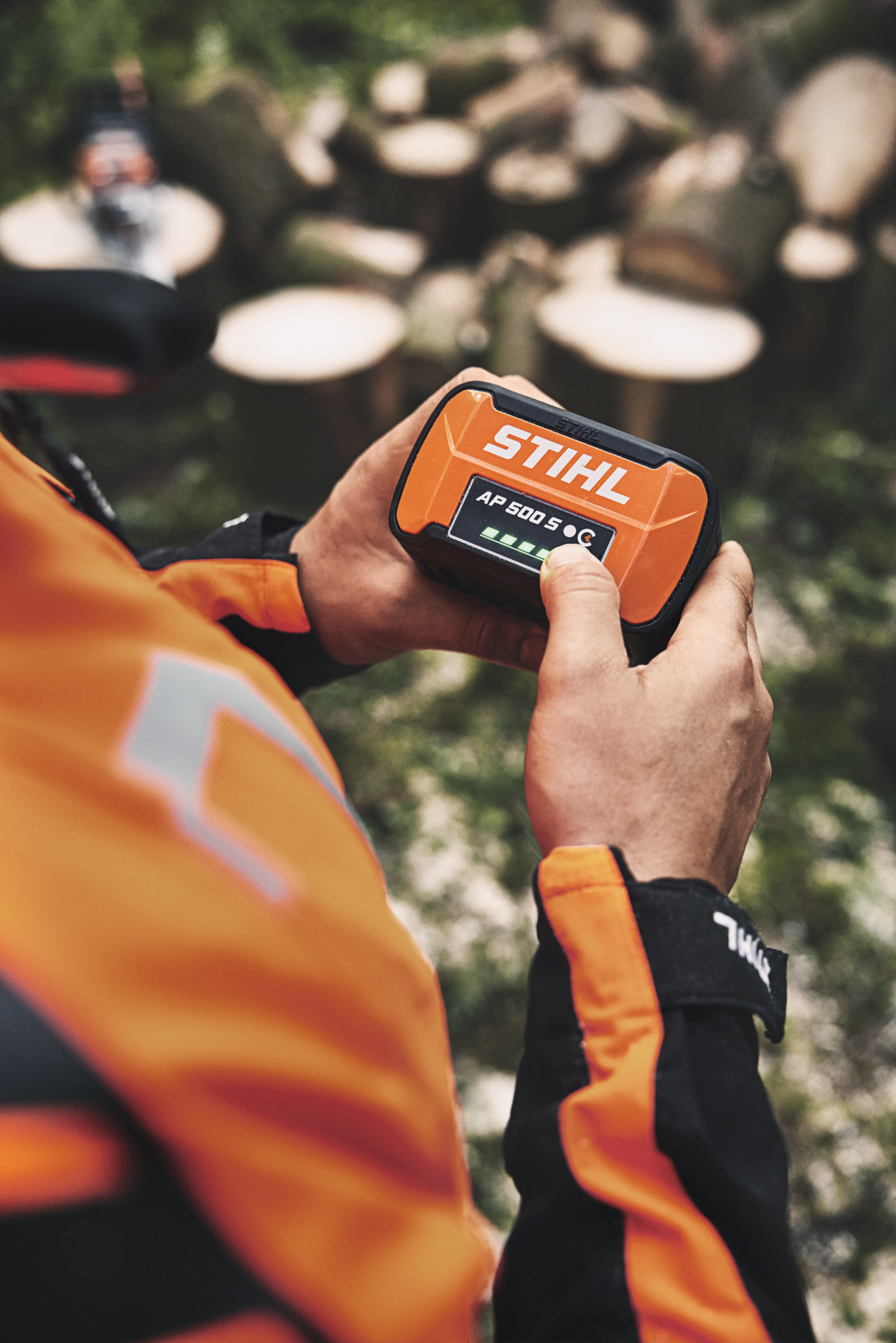

The STIHL AP‑System supports you in your daily gardening, landscaping and tree maintenance tasks. The matching AP lithium-ion batteries help you to use STIHL cordless power tools even for demanding tasks. Four LED lights keep you informed of the charge level of the battery at all times. Thanks to new power laminate technology, the STIHL AP 500 S battery offers you twice the number of possible charging cycles compared to previous STIHL batteries. The power output has also been increased once again compared to the STIHL AP 300 S. The STIHL AP 500 S battery can also be integrated into the STIHL connected fleet management system, giving you full oversight of the actual operational time.

You can recharge the STIHL AP 500 S with a nominal voltage of 36 V using the STIHL AL 500 quick charger or the STIHL AL 301 and STIHL AL 101 chargers.

In our overview of battery life and charging times, you can see how long you can work with your STIHL battery power tool and how long the selected AP battery takes to charge. The overview also shows which AP battery is recommended for your STIHL power tool. For optimum use, please also refer to our device-battery compatibility overview.



The following devices are compatible with full power:
ASA 65, ASA 85
BGA 85, BGA 86, BGA 100, BGA 160, BGA 200, BGA 250, BGA 300
BRA 500, BRA 600
FCA 135, FCA 140
FSA 65, FSA 85, FSA 86, FSA 90, FSA 110, FSA 120, FSA 130, FSA 135, FSA 200, FSA 400
HLA 65, HLA 66, HLA 85, HLA 86, HLA 135
HSA 66, HSA 86, HSA 94, HSA 100, HSA 130, HSA 140, HSA 150
HTA 65, HTA 66, HTA 85, HTA 86, HTA 135, HTA 150, HTA 160
KGA 770
KMA 120, KMA 135, KMA 200
MSA 160, MSA 161 T, MSA 200, MSA 220, MSA 300
REA 100
RGA 140
RMA 2, RMA 443, RMA 448, RMA 453, RMA 510, RMA 7, RMA 750, RMA 756, RMA 765
SEA 100
SHA 140
SPA 130, SPA 140, SPA 65
TSA 230, TSA 300



Note: AP 500 S batteries are certified in line with the IPX4 protection class.
