AR 3000 L backpack battery

AR 3000 L backpack battery
AR 3000 L backpack battery
R 34,918.00*
All prices include 15% VAT.
Select item
  • Available to buy from STIHL Approved Dealers
    Click on the button above to find your nearest one
  • Product Details
    • Compatible with all cordless tools in the STIHL AP system
  • Owner manuals

    Find here the owner manual

Technical details

Rated voltage36
Max. voltage40
Battery cell technologyLITHIUM-ION
Battery weight9.5 kg
Rated capacity as per IEC 6196041.20 A·h

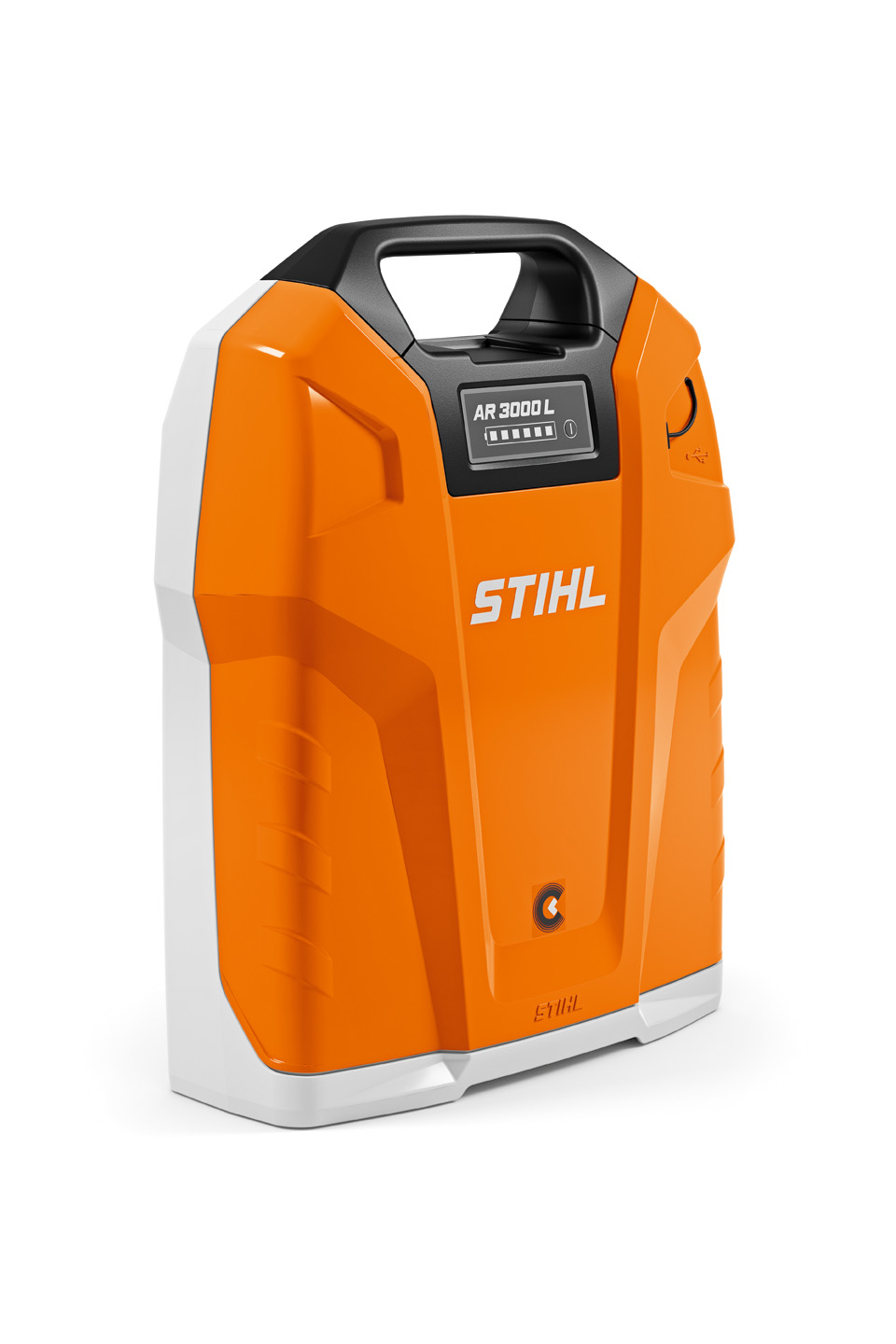

AR 3000 L battery: Backpack battery for long periods of work with cordless power tools from the AP-System

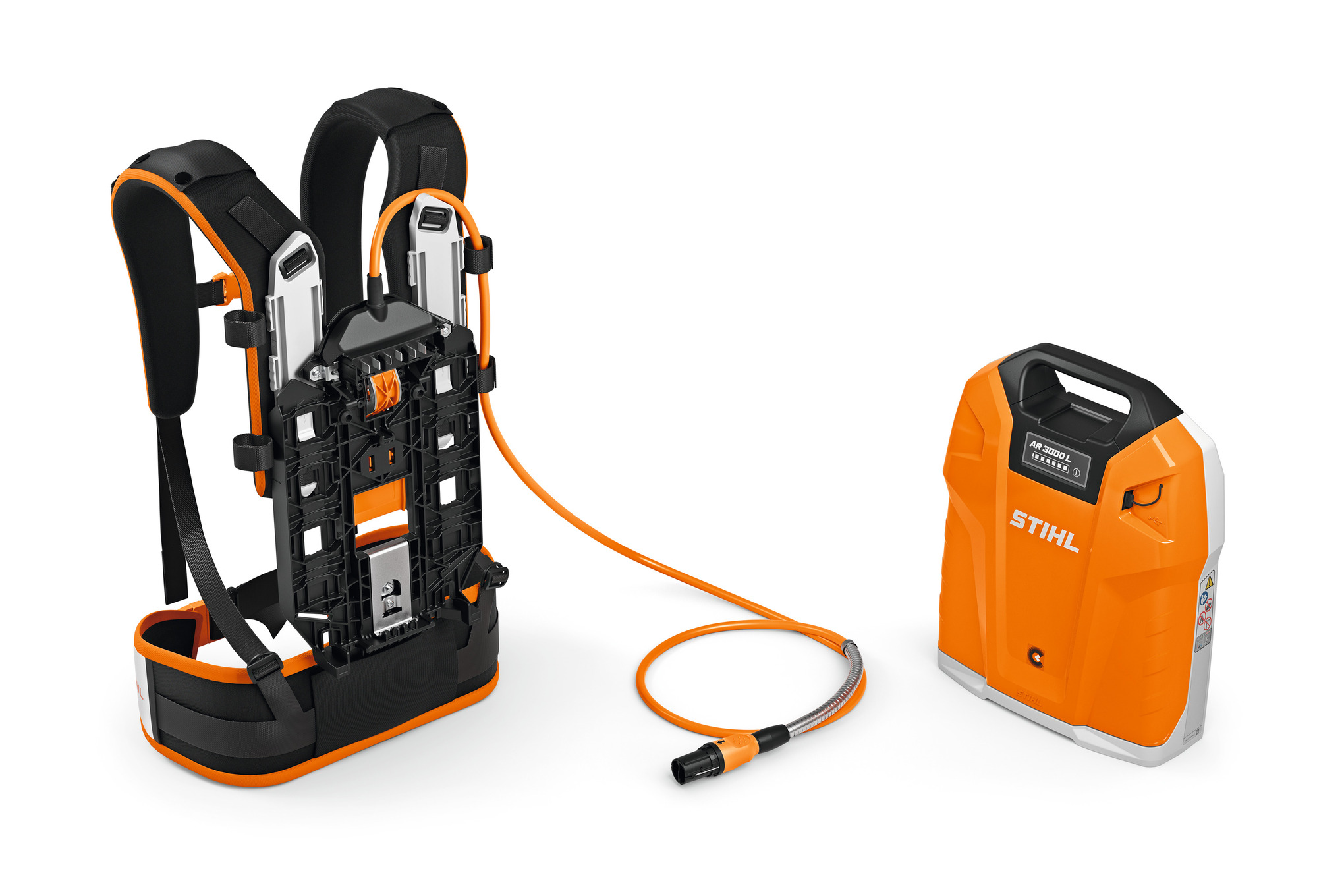

The STIHL AR 3000 L backpack battery is designed for professional work in horticulture and landscaping, as well as green area maintenance by local authorities and businesses. Its robust battery is ideal for all-day, demanding use in noise-sensitive areas, when you need to work efficiently with energy-intensive STIHL AP-System cordless power tools while not putting strain on your back. The STIHL AR 3000 L impresses with a robust and rain-repellent design and 1,520 Wh of power. You need a carrying system to use the STIHL AR 3000 L battery. You can attach the STIHL AR 3000 L battery to the optional, comfortable and ergonomic STIHL AR L carrying system without the use of tools. You can also insert the AR 3000 L battery directly into your STIHL RMA 765 V cordless lawn mower instead of an AP battery.

Thanks to the Bluetooth® interface integrated into the housing, you can establish a connection with STIHL connected and manage the battery there like a power tool. This gives you greater clarity in deployment planning. You can also charge a smartphone, for example, via a USB port on the battery housing. Reliable power transmission to cordless power tools with a socket is facilitated via the STIHL AR L connecting cable. You can use power tools with a battery slot in conjunction with the STIHL AP battery adapter.

You can charge the STIHL AR 3000 L backpack battery using the STIHL AL quick charger. To charge the AR battery, you need a connecting cable for AR L batteries and a STIHL AP battery adapter. The current charge level of your STIHL AR 3000 L battery is displayed by the charge-level indicator via 6 LEDs.

Our overview of STIHL battery life and charging times shows how long you can work with your STIHL cordless power tool and how long the AR 3000 L battery takes to charge. For optimum use, please also refer to our device-battery compatibility overview.



The following devices are compatible with full power:
FSA 90, FSA 110, FSA 120, FSA 130, FSA 135, FSA 200
HLA 65, HLA 66, HLA 85, HLA 86, HLA 135
HSA 66, HSA 86, HSA 94, HSA 100, HSA 130, HSA 140, HSA 150
HTA 65, HTA 66, HTA 85, HTA 86
KMA 120, KMA 135, KMA 200
RMA 765
SEA 100
SPA 130, SPA 140, SPA 65

The following devices are compatible with reduced power:
FSA 400



Note: the AR 3000 L battery is certified in accordance with protection class IPX4.
